Specification

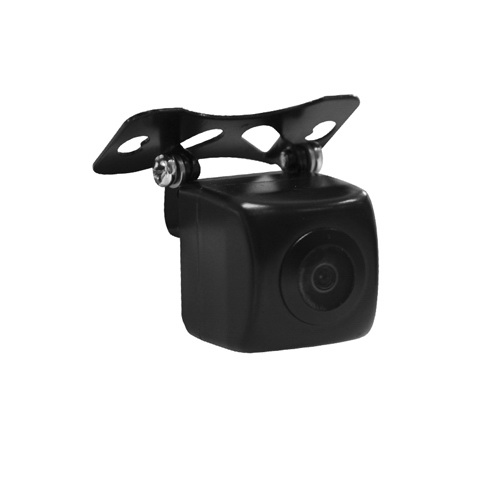

Product SC-UN07
Scheme MT136
System NTSC/PAL
Operating Voltage DC 9V~16V
Consumption 2.1W
Imaging Sensor 1/4” CMOS sensor
Pixels  NTSC-720(H) x 480(V)
 PAL-720(H)x 576(V)
TV System  480 TV line
S/N Ratio >48dB
Min Illumination 0.2Lux
Waterproof Rating IP67
Video Output 1.0 Vpp Composite, 75 Ω
Viewing Angle  D:190°/H:180°/V:130°
Camera Lens 1.8mm
White Balance Auto
AGC Auto
BLC Auto
Operating Temperature -30℃~+70℃
Storage Temperature -40℃~+85℃
Operating Humidity 10% ~ 90%
Shell Material PC
